For many still well remembered: The handhelds of the 80s and 90s, Trico Tronic, Gameboy and co

Speech output in the 80s – Speak and Spell

Loading

Many of the readers of this post may be familiar with the Hollywood movie E.T. (The Extra-Terrestrial), in our regions in the translated version: “E.T. – Der Außerirdische”.

At least the older readers will know him. The film was shown in our cinemas in 1982 and I had the opportunity to see it at the time. As a child, you (at least I) always immersed yourself in the stories and lived in them. Briefly told, the story follows a small alien who was accidentally left behind on Earth while his fellow aliens flew away in their spaceship, fleeing from government agents. So little E.T. in a shed where he was found by local children. They befriended him and helped him contact the spaceship. To do this, he constructed a kind of radio system from everyday objects. For example, the antenna consisted of an umbrella, a record player with a circular saw blade, a clothes hanger with a dinner fork, and a child’s toy that could produce synthetic voices. This toy is called “Speak & Spell” and was developed by the Texas Instruments company.

The Speak & Spell is a handheld children’s computer from TI (Texas Instruments) that consists of a keyboard, a display and a small speaker. The heart of the device is a speech synthesizer IC, which makes it possible to generate an artificial voice. An audio output similar to the human speaking voice is achieved via LPC (linear predictive coding). With an internal ROM and optionally also external ROM modules, various tasks (spelling, word guessing games, etc.) can be realized. Selection and entry are made via a keyboard.

The Speak & Spell children’s computer originally came from a three-part toy series with “talking” computers. There was also a Speak & Math and a Speak & Read. You can occasionally find collectors presenting their devices on online video platforms. The devices were initially sold in the USA, Great Britain and Japan. Depending on the country of delivery, there were also different ROM modules with mini-games such as Mystery Word, Letter or Secret Code. These computers were intended for children from the age of 7. Later, more language libraries were released in seven language variations. Among other things, there is said to have been a module for the German language.

The first Speak & Spell was introduced at the 1978 Consumer Electronics Show as one of the first portable devices with a visual display and pluggable ROM game cartridges. This model was also used in the film E.T. known. It differs from later generations of devices only in terms of the keyboard, which in the original version still consisted of “real” keys. The TMC0280 synthesizer chip works inside. This was developed by a small team of engineers under Paul Breedlove † (1941-2021), engineer at Texas Instruments in the late 1970’s. This development began in 1976 as a result of TI research on speech synthesis.

At the beginning of the 1980s, a revised version of the device came onto the market. Here the keys have been replaced by a membrane keyboard. A Speak & Spell Compact version has also been released. In this case, the optical VFD display has been dispensed with and the size has been halved. There was another edition in the late 1980s. This time the VFD was replaced by an LC display and the keyboard got a QWERTY layout. As part of the retro wave (my guess) the company “Basic Fun” brought the classic Speak&Spell back onto the market in 2019. It looks similar to the 80s version, but is technically up to date (everything is generated in a small chip that was bonded directly to the “mini board”). The version also no longer has connections to the outside world.

The following chips are installed on the mainboard of the version sold before 1980:

  • TMC0271 (microcontroller and VF display controller for 9 digits with 14 segments each)
  • TMC0530 (or TMC0351, TMC0352) 128kBit ROM
  • TMC0281 (TMC0280 series speech synthesizer IC)



The model that is in my collection is one of the versions sold after 1980. The following ICs are installed here:

  • TMC0271 (microcontroller and VF display controller for 9 digits with 14 segments each)
  • TMC0281 (TMC0280 Series Speech Synthesizer IC)
  • CD2304 and CD2303 (ROM)



The VF-display has eight digits with 14 segments each. The supply voltage of 6V is obtained from four C-cells connected in series. The 9V and 21V for the supply of the VFD and microcontroller is provided by a discretely constructed DC/DC converter, which is located on its own circuit board. The membrane keyboard is plugged into a 13-pin Flexiprint socket. There is a small speaker for playing the sound, or you can connect headphones via a 3.5mm jack. The sound is obtained directly from the synthesizer chip. In order to adjust the output impedance to the speaker, a small audio transformer has been installed right next to the jack socket. Another socket serves as an external power supply. A trimming potentiometer changes the playback speed/pitch of the audio output.

The TMC0280, later called the TMS5100, is the single chip speech synthesizer that used a 10th order LPC model using pipelined electronic DSP logic. The phoneme data for the spoken words are stored in PMOS ROMs. The enormous capacity of 128 Kbit was the largest ROM that was still affordable at the time. Additional memory module cassettes can be inserted via a recess in the battery compartment. The contents of the memory modules can be selected using a key on the keyboard. The data rate of the audio output is slightly less than 1kbit per second.

DC/DC Converter PCB





Selfmade ROM module for Vectrex

Loading

For the Vectrex game console a home arcade machine from 1982, there were, or there are a very limited number of game titles available. I will present the Vectrex itself, or the restoration of this darling, in a separate article.

The games were available in the form of ROM modules and had to be inserted into the side of the console. Today, like the console itself, they are pretty rare and difficult to find. In terms of price, they are usually not bargains either. There are also replicas, multiroms and some DIY projects that keep the game program or even several games saved on the basis of the old EPROMS and were thus playable via a “module”. Since I also have all sorts of Eproms with different sizes in the component store and also got a couple of 27C512 Eproms sponsored by a colleague (thank you Jürgen), I just had to try to tinker with a ROM module.

originale Vectrex ROM-Module board

So quickly thought about what I would need for this. Here is a small list:

  • old EPROMS (I use Eproms that can be erased with UV light)
  • an Eprom programmer (in the back corner of a box I found a ChipLab programmer with a parallel interface)
  • an old computer with a parallel interface and an older operating system (Windows XP). Fortunately, I once again did without disposal and brought an old laptop back to life.
  • software for the programmer (here I use “ChipLab” which can run on WindowsXP with the help of “porttalk22”)
  • the binary data or HEX files of the original ROM modules (you can use the internet search for this)
  • a layout tool (Autodesk Eagle)
  • a craft shop where you can etch circuit boards, or an account with
  • a Far Eastern PCB manufacturer
  • Soldering tools and small parts
  • and of course a Vectrex – otherwise none of this makes any sense
EPROMs

In order to determine the memory requirements of the Eproms, I first have to know the size of the games. Here is the list of titles and their size:

Games with a size of 4 kB (4 kilo bytes). This corresponds to an address range from hex 0000 to 0FFF

  • Armor Attack
  • Art Master
  • Bedlam
  • Berzerk
  • Clean-Sweep
  • Cosmic Chasm
  • Engine Analyzer
  • Hyperchase
  • Minestorm 2
  • Rip Off
  • Scramble
  • Solar Quest
  • Space Wars
  • Star Castle
  • Star Hawk
  • Star Trek

Games with a size of 8 kB (8 kilo bytes). This corresponds to an address range from hex 0000 to 1FFF

  • Animaction
  • Blitz
  • Fortess of Narzod
  • Heads Up
  • Melody Master
  • Pitchers Duel
  • Pole Position
  • Spike
  • Spinball
  • Tour de France
  • Web Wars

Games with a size of 12 kB (12 kilo bytes). This corresponds to an address range from hex 0000 to 2FFF

  • Dark Tower

Next, I’ll take a look at the Eproms for pinout and size. I have two sizes available for the number of pins. Eproms with 28pin and 32pin in DIL housing. The following types belong to those in the 28-pin housing:

  • 27c64         8k x 8 bit  so   64 kb (kilo Bit)
  • 27c128   16k x 8 bit  so 128 kb (kilo Bit)
  • 27c256   32k x 8 bit  so  256 kb (kilo Bit)
  • 27c512   64k x 8 bit  so  512 kb (kilo Bit)
picture from (www.futurlec.com)
picture from (www.futurlec.com)



The pinout is identical except for the different number of address lines. However, the 1Mbit variant 27C1001 (27C010) has a different pinout.

Bild von (www.futurlec.com)

The next step is to look at the pinout of the Vectrex module bay. The pin numbers of the module are marked in the picture below.

Pin Nummerierung des Vectrex Moduls

The signals associated with the pin numbers can be found in the Vectrex circuit diagram of the mainboard. The picture below shows an extract from the circuit diagram with the area of ​​the 36-pin cartridge connector. (Source: console5.com)

All the information you need to start with a circuit diagram and layout has now been collected. I looked for an eagle layout for the circuit board connector on the web. But nothing could be found straight away. So an original ROM module had to be used as a reference for the dimensions and spacing of the contact pads. With the dimensions removed in this way, it was quickly done and I had drawn a new Eagle component and saved it in the library.

vectrex_connector.lbr

I drew two variants of the module circuits. One for the EPROMs with 28 pins and one for the 1Mbit ROMs with 32 connection pins. (Since there is also space for more games here) In order to be able to distribute all possible sizes of games differently on the EPROM, I have made address bits 12, 13 and 14 switchable. In such a way that these three address lines can either be controlled by the Vectrex or selected externally by the operator using DIP switches (L / H). Bits 15 and 16 (can also be selected via DIP switches).

The following table shows a few examples of how the start addresses of the games can be selected.

bit
16
bit
15
bit
14
bit
13
bit
12
bit11-bit0
game adresses
adresses
start – end (hex)
L L L L L at 8k game 0000 – 1FFF
L L L H L at 8k game 2000 – 3FFF
L L H L L at 8k game 4000 – 5FFF
L L H H L at 8k game 6000 – 7FFF
L H L L L at 8k game 8000 – 9FFF
L H L H L at 8k game A000 – BFFF
L H H L L at 8k game C000 – DFFF
L H H H L at 8k game E000 – FFFF
H L L L L at 4k game 10000-10FFF
and so on…
Ansicht im Hex Editor

Provided, of course, that the game data was written to the EPROM in this way. To do this, I use one of the many freeware hex editors (HxD) and assemble a binary file from the individual game images. This “file” is then imported into the ChipLab software, the correct EPROM is selected from the database, then the chip is inserted into the programmer and off you go … (First, check again whether the chip is empty. Otherwise it has to ” topless “in the sun, or under the UV lamp (for about 15-20min)

Eprom inserted to the programmer

Once the chip has been filled with bits and a layout has been made from the circuit diagram, a prototype can be etched. To do this, I was able to use our company’s etching system in a short lunch break and remove the unnecessary copper from the board using etching technology.

pcb layout printed on foil

After exposing a double-sided board coated with photopositive lacquer and then developing it, the excess copper can be removed with EisenDreiChlorid. What remains is the desired structure.

Sometimes a selfie in between. It takes about 57 seconds to expose the circuit board to UV light. Enough time to take stupid photos with the phone: D



The next step is to drill the holes in the board. The vias (VIAs) from the top to the bottom layer are not implemented in the prototype by galvanic application of copper in the holes, but by hand by pushing a piece of silver wire through the hole and then soldering it on both sides.

the etching is completed

Now all that’s missing is the assembly. But it is done very quickly. Because apart from the IC socket, a couple of pull-up resistors and the DIP switches, there isn’t much on the board. So solder the few parts, put the chip in the socket – and the ROM module is ready.

ready assembled ROM module

What the finished module looks like on the Vectrex and, above all, how it works, I’ll show you in a short video. I also embellished the board a bit and commissioned it as an industrially manufactured circuit board from a Far Eastern printed circuit board manufacturer …

(small update on October 20, 2020)
The circuit boards made in far east have come and, in my opinion, look quite acceptable. A board is quickly assembled … here is the result:



Vectrex gameconsole

Loading

It was some time ago that I edited and prepared this darling. Writing a post about it is a completely different topic. I have often thought to myself that one could film the repairs and preparations right away and then make a small film out of them and publish it on a video platform … Well, at least now, in the meanwhile second Corona Lock down and a sleepless night, I am sitting in front of the computer again and try to write a few lines about this piece of ingenious hardware. I have never owned this “ingenious piece of hardware” myself and found out about its existence late, but when I had read a little bit, I had to have one – but of course at an affordable price. As always, we searched for defective devices for a long time – and since they were only manufactured for a short time, they are also rare and difficult to find. But after a long search I was lucky and found a defective, but partly complete device. As already written above in the title, it is about the (or “the”) Vectrex.

The Vectrex is a home arcade machine, with a 24cm monochrome picture tube, a fold-out and also removable joystick. This slot machine is a complete “stand-alone” system that only needs a power supply from the socket and you can start right away. The game of the Vectrex is called “MINE STORM” and is a clone of the ASTEROID game. So at that time you bought an ASTEROIDS machine for your home. When I speak of “then”, it means from 1982 to 1984. Because the US company General Consumers Electronics (GCE) started selling the machine in 1982. At that time, however, Atari was already on the market with the 2600 and enjoyed great popularity. The sale of the C64 by Commodore was also imminent. These events reduced the chance of the Vectrex’s big breakthrough, especially since the starting price of $ 200 was not a bargain. The sales company GCE went bankrupt in 1984. In Europe, “MB” Milton Bradley was the rights holder from 1983 and sold the Vectrex (or which?). In order to not only have to play the integrated MINE STORM, there is an expansion port in which game modules in ROM form can be plugged. There was a manageable amount of game titles – by that I mean, there weren’t that many. I mentioned a few of them in the post “Homemade game module for the Vectrex”. But there is still a community today that deals with the hardware and software for the Vectrex and develops its own games (so-called homebrew games). On the website vectrex.de you can find a rich collection of information about the hardware. Youtubers like Zerobrain and Wolfgang Robel also deal with this topic and have published interesting articles on it.

Driver board for high voltage and deflection etc.

So – but now to the technology of the console. The Vectrex consists of a black plastic housing. Built into it is a CRT (in German a cathode ray tube, i.e. picture tube) in portrait format. A board for controlling the tube with the high voltage generation and drivers for the deflection coils. Then there’s a 50 Hz mains transformer that serves as a low-voltage supply for all of the electronics. It should be noted here that the primary side of the transformer is connected directly to the mains cable as the 240VAC side. The transformer ALWAYS consumes energy. The combined volume / mains switch is attached to the low-voltage side and only separates the electronics. The transformer always remains connected to the network. So if you are not using the device, you should also pull the power plug.

Mainboard

To continue with the list of innards: What is still missing is the, well, not entirely unimportant part – the mainboard with the “computer”. A 6809 CPU from Motorola works on it. This is an 8-bit CPU that is driven with a clock rate of 1.6MHz. The clock is generated by the on-chip oscillator, which only needs the quartz in the outside world. As always, the exact technical features can be found in the data sheet. A three-channel synthesizer sound chip, the AY-3-8910, is installed to generate the sound. Unfortunately, savings were made in further signal processing and the audio signal has to take along almost all of the radiated interference on the way to the audio amplifier that the power levels emit to control the picture tube. But that is a well-known phenomenon. The Vectrex is known for the “I call it” messy, noisy sound output. But this also shows the originality of the early consoles. Allegedly the last generations should not have this problem anymore before the end of the sale. So far I have only got to know the noisy Vectrexes.

From sound to picture. And that’s also one of the big differences from traditional video game consoles. A conventional game console as well as any television receiver rasterizes the image. The electron beam of the tube means that the image information is written line by line onto the luminous layer. Depending on the standard, there are differences here, such as field processes or the number of lines or the number of image changes. But the principle is the same for all raster writers. At the top left, you begin to write a line with the different brightness and color information. Then the beam reaches the right end of the picture edge and is switched to dark in order to start again very quickly in the next or (depending on the method) the next but one line. With the PAL system the time from left to right was 64µs and that with 625 lines. That means a complete picture was written in 0.04s. This in turn means that in one second you can achieve a number of 25 displayed images:

64µs per line * 625 lines = 0.04s per image * 25 images = 1 second

So far so good. The electron beam was deflected by means of magnetic fields via coils on the neck of the picture tube.

It works a little differently with the Vectrex. The name Vectrex, according to my approach, comes from the term “vector” by definition: size that is represented as an arrow running in a certain direction with a certain length and which can be determined by various information (direction, amount). In the data sheet of the Vectrex one reads with a screen resolution of 256×256 positions. This means that, starting from its zero position (i.e. both deflection coils do not generate a magnetic field), the electron beam can be deflected in 128 steps up, down, left and right. (both axes each have a resolution of 8 bits). How does it work now? Let us assume that a small triangle is to be displayed in the upper left area of ​​the screen. We assume that the left edge of the image is at x = -128, the right at x = + 128, the upper at y = -128 and the lower at y = + 128.

Vectrex picture tube

For this purpose, the electron beam is deflected from its zero position to the top left, for example in x = -50 and y = -50. From there it drives to the next point of the triangle e.g. -40 / -60 and from there to the next (e.g. -30 / -50) and then back again to -50 / -50. While approaching these three points, the electron beam is switched to light. So he draws the triangle. From the last point and also the first point of the closed triangle, it goes back to the zero position and of course with the electron beam switched to dark. As long as the triangle is displayed on the screen, the process is repeated at maximum speed in order to see a nice, flicker-free triangle. Now you can imagine what happens if a lot of symbols are to be drawn at the same time. Of course that is not possible. The beam must approach and draw all symbols one after the other. This means, in turn, the more symbols, the longer it takes until the image is completely drawn and, conversely, the slower the refresh rate. So the more graphic symbols, the more flicker.

The X / Y data are generated digitally as 8-bit values ​​and converted into an analog voltage via two 8-bit DA converters (digital / analog). This voltage is adapted to the non-linear behavior of the deflection electronics (using OP-amp integrators) and fed to a two-channel amplifier stage, which also creates frequencies in the higher kilohertz range and is able to drive the deflection coils, i.e. inductive loads. And what is available here: An audio output stage from an audio amplifier. And that’s exactly how it was solved here. Under the heat sink is a LM379 dual 6W audio amplifier IC from National Semiconductor. A nice detail on the side: The high-voltage transformer is IC-clocked by an NE555 …

In order to be able to operate the games on the Vectrex, a removable controller – i.e. joystick – is integrated with four buttons in the form of the lower front cover. The two-axis stick consists of two potentiometers with which a fine, “quasi stepless” control of the game objects is possible.

Well, and such a console, or Home Arcade, or just such a treasure, I found cheap after an endless search. With a few problems, of course. First and foremost, it was important to me that everything was complete and that no parts were missing if possible. From the outside, everything was there, except for a cut power cord. The controller was complete – the spiral connection cable was not missing either and was in good condition. Unfortunately, someone had already tinkered with the controller housing and tried to pry the two housing halves apart with a screwdriver, but apparently had not considered that there are a number of screws under the upper sticker that hold everything together. The case looks accordingly today. – Unfortunately-

Housing shell of the controller damaged by screwdriver levers

Due to the accumulation of dust and the musty smell, the Vectrex had apparently spent the past 35 years in a cellar or attic. So my plan was to completely dismantle the whole device and check for completeness at the same time. As soon as I opened the case screws, I noticed that a couple of screws were missing. So there was already someone inside. After the complete dismantling, intensive cleaning was required. More precisely, it was more of a washing. So everything from the picture tube, the deflection unit to the boards had to go into the soap bath. After drying, the result can also be seen. The parts look like new again. Repairs could now begin.

In the end it turned out that apart from a few small things there were no major problems. At first the power switch was so resinous on the contacts that no closed contacts could be reached at both poles. Then there was no high voltage on the tube – here the transistor BU407 was defective and only switched through very tired or not at all. The various pots needed a little affection and one or the other capacitor still had to be replaced. But that’s about it. Below I upload a few pictures of the cleaning and repair work.



Tabletop game console Galaxy II

Loading

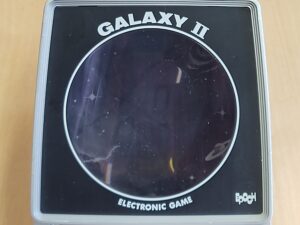

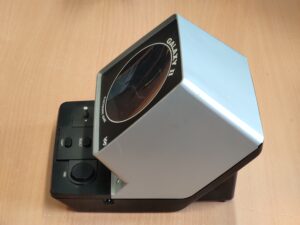

“ASTRO WARS” or “GALAXY II” is the name of the table top game console that I am introducing here. It is the home version of the arcade game “Galaxian”, which was implemented as a small tabletop device for everyone at home. The manufacturer was Epoch, which sold the device in 1981. There was also a clone made by Grandstand under license from Epoch. The device was named “ASTRO WARS”

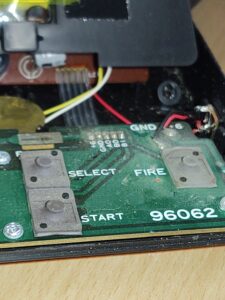

As was the case with many game consoles back then, the technical structure is a “stand-alone” console. This means that the device could be operated without any additional accessories. You only need four 1.5V cells or a 6V plug-in power supply. The display, i.e. the display, was implemented using VFD (vacuum fluorescence display), as LCDs were still expensive at that time and were only used as clock displays due to the low power consumption.

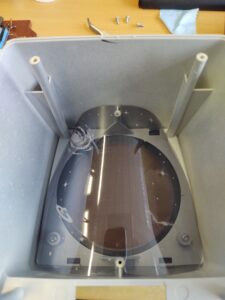

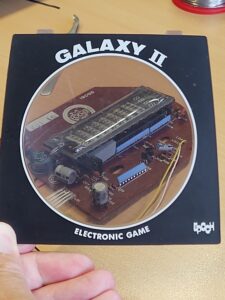

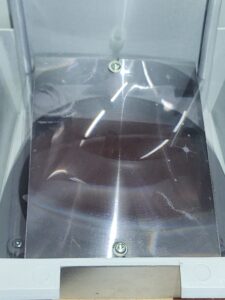

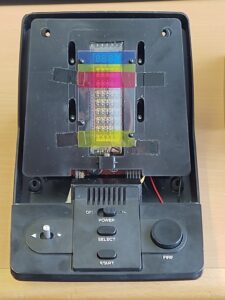

The screen is designed in such a way that a curved, transparent film, printed with space motifs, is placed over the VFD tube. A Fresnel Fresnel lens shows the display content optically enlarged. The display also appears in color or shows the game symbols in color. This was solved by sticking colored foil over individual areas of the VFD tube. This gives the entire design of the ad a certain 3D effect.

From the original advertising text on the packaging:

“Ultra-modern arcade excitement is now yours, as you defend your earth ships against a fierce invasion. You must dodge the enemy missiles and fire back at the squadrons of attaching fightes, warships and enemy command ships. If you survive, you can attempt the exiting DOCKING MANOUEVRE and earn extra points.”

Die hochmoderne Arcade-Spannung liegt jetzt bei Ihnen, wenn Sie Ihre Erdschiffe gegen eine heftige Invasion verteidigen. Sie müssen den feindlichen Raketen ausweichen und auf die Staffeln zurückschießen, in denen Kämpfe, Kriegsschiffe und feindliche Kommandoschiffe angebracht sind. Wenn Sie überleben, können Sie mit dem aufregenden Docking Manöver zusätzliche Punkte verdienen.

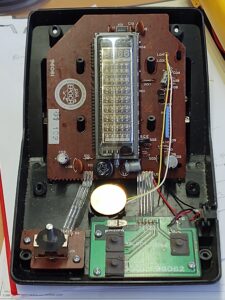

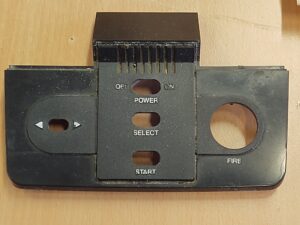

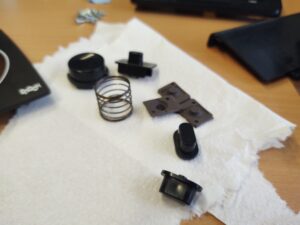

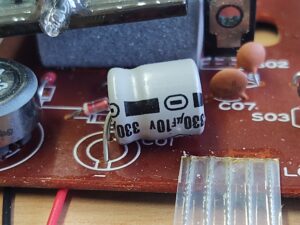

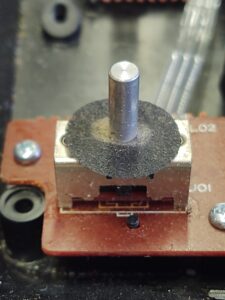

To the technical structure:

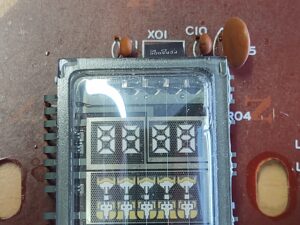

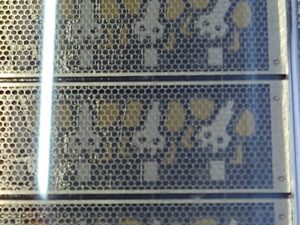

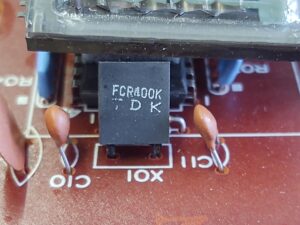

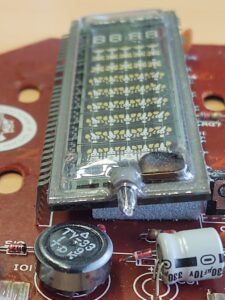

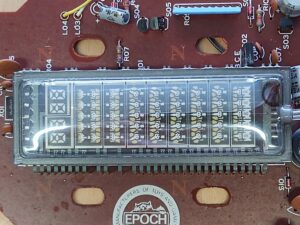

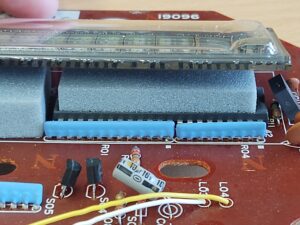

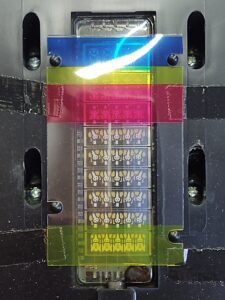

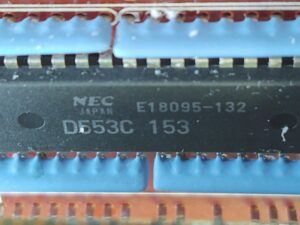

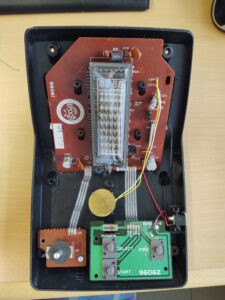

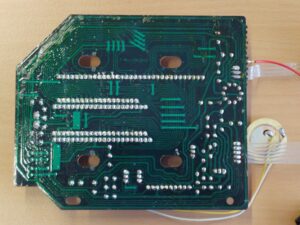

As already mentioned, the structure is based on a fluorescent display, which in turn is controlled by an NEC D553C microcontroller / processor. This 4Bit 42PIN IC in the DIP housing is one of the chips used very often in game consoles at that time, as it not only contains the game algorithm, but is also able to control the display directly. There is also sound that is output via a piezo. The chip only needs a power supply. The clock is generated with an external resonator … a more detailed description can be found in older articles.

  • Tabletop game console

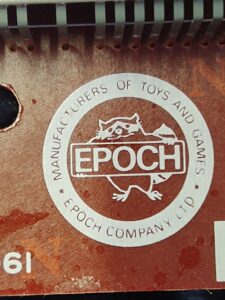

  • Manufacturer EPOCH, Grandstand licensed
  • Distributed by Schuco Tronic
  • Space Invaders / Galaxian clon
  • Screen: VFD Display
  • Three game modes
  • Year of manufacture 1981
  • Power supply: 6V with 4×1.5V Cells or plug-in power supply

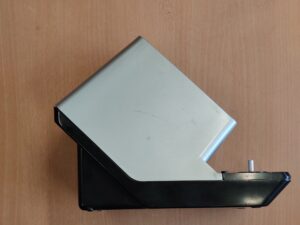

  • Size ca. 22 x 17 x 16cm

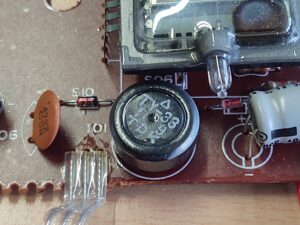

  • Sound output via piezo
  • Age recommendation according to sales: From 8 years

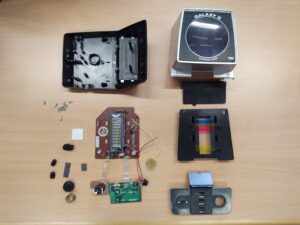

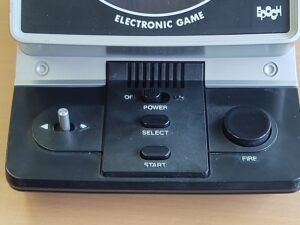

Photo gallery:

Update 2.2.2024: At the request of a blog reader, I measured the dimensions and shape of the “front screen” of the console.

Frontseite



NES Classic Mini : Off with exorbitant prices

Loading

The Nintendo company launched the Nintendo Classic Mini game console and put it on sale in 2016. It is a revival of the original 8-bit game console Nintendo Entertainment System from 1983 (release in Japan) and 1986 (release in Europe). The original NES console has sold around 61 million times and was replaced in 1992 by the SNES (Super Nintendo Entertainment System) a 16-bit console. The popularity of the Nintendo consoles is apparently so great that the new edition was sold out shortly after its release with a retail price of around 60 euros. Here traders sensed the big deal and offered the devices on Amazon, ebay and the like at sometimes horrendous prices. Even now, almost a year later, they are still not available for less than 100 euros. And Nintendo doesn’t produce any other units either. Instead, the same game began with the revival of the SNES series in miniature.

The NESPI in its packaging

But there are other ways you can get a miniaturized version of this console for a lot less money. For a few euros you get a case called NESPI CASE, which corresponds to the NES CLASSIC MINI, but with one big difference: you can install the computer yourself in the form of a Raspberry PI. This opens up countless possibilities to use emulator software to recreate your own consoles using software. The NESPI case has an integrated 4 port USB hub and a LAN Ethernet connector that leads the connections of the Raspberry PI to the outside. Two USB ports are arranged in such a way that they serve as controller connections. The other two USB ports and the Ethernet connection are located under the device flap, where the game modules were once inserted. The device is equipped with a power switch with a power LED and a reset button.

NESPI Case unpacked
Controls and connections

The housing is supplied with pre-assembled adapter boards. The screws for mounting the Raspberry Pi and the housing shells are also included in the scope of delivery. A small included Phillips screwdriver and a piece of paper with assembly instructions make things even easier.

Raspberry PI in NESPI-Case

The LAN and USB ports of the RaspberryPi are routed to the outside via the cables and plugs on the adapter boards. Once the plug connections have been made, the RapsberryPI board can be screwed into the housing. Optionally, a 5VDC fan with the dimensions 30x30x10mm can also be attached to the housing cover using locking lugs. A two-pole pin header is available on the circuit board for the power supply of the fan. Once everything has been installed and connected, the upper part of the housing can be screwed on.

Raspberry Pi eingebaut

The software can now be set up. I prefer the images from retropie or recalbox. More information can be found on the relevant websites. Once the desired emulators have been set up, you only have to transfer the game files, the so-called “Roms”, that is, binary copies of the game modules of the original hardware in a .bin or .rom or .iso file etc. to the SD card or USB Copy the stick and integrate it into the “EmulationStation”. And you’re ready to go. The USB controllers in the NES look are also available for just a few euros from China …

NESPIE with NES-Nachbau “ChinaController” attached



an old NES classic



brand new retro game controller

Loading

NES – Nintendo Entertainment System is certainly still a household name. It was the 8-bit game console from Nintendo, which was also sold in Europe in the mid-80s and had influenced the youth of the time. It is now a museum piece that already deserves the title “Retro”. Maybe for this reason, she begins to revive in the Retrogamergemeinde. For example, this year a remake of the NES in miniaturized form with modern technology and pre-installed games on the market.

dsc_2760Also via emulators for all kinds of platforms you can bring the old NES game titles back to life. In order to be able to serve these games “in the right way” (of course, it is also possible with the PC keyboard or via the touch screen on the mobile phone), the company 8Bitdo Tech has launched the NES30 GamePad Controller. It is a wireless bluetooth controller which was modeled on the original NES controller. It is equipped with an integrated rechargeable battery that can be charged via a MicroUSB cable connection. The controller is designed to be configured as a PC game controller, as a joystick, as a Bluetooth keyboard, and as a USB joystick. This can be realized via five different modes. These modes can be selected by keyboard shortcuts during power up. The table below shows the different modes:

  Mode1 Mode2 Mode3 Mode4 Mode5
  Joystick BT-Keyboard iCade Emu-Touch USB-Joystick
Power ON START START+B START+A START+X Kabelverbindung
Blue LEDs are flashing 1x 2x 3x 4x
OS WIN Android WIN/Apple Android Android Apple Android Apple WIN


dsc_2759The picture shows the USB charging socket, to the right of which are two status LEDs.

dsc_2816The battery is located on the back of the board

dsc_2817die Platine des Controllers; der die Firmware des Mikrocontrollers kann aktualisiert werden

dsc_2818Contact mats represent the buttons. Under the two shoulder buttons are real micro buttons …

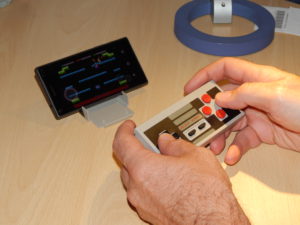

dscn0763Here is the emulator “NES Emu” served on an Android phone with the NES30;)



before Gameboy and Playstation

Loading


A trend of the 80’s were  mobile video games. As in the Gameboy, PSP and in the meantime also smartphone times, it was quite practical to have a small, compact game console with you as a young person.

As an example, I dug up one of these “mini consoles”. It is a popular video game called “Trick o Tronic” with a small LCD screen. The difference to today’s LCD displays is that the game image does not consist of individually controlled pixels, which in total show the game figures, but each figure represented in the image was a kind of controllable symbol, so to speak. So, for example, a male had to run from left to right, so every movement and position was present as a separate symbol.



The background of the field was simply an image (photo or drawing) behind the LCD that represented the scene. The whole game was powered as well as the former digital clocks, with a 1.5 volt button cell. The sound of the game came from a piezo loudspeaker that could play beeps. (but only with one frequency)
